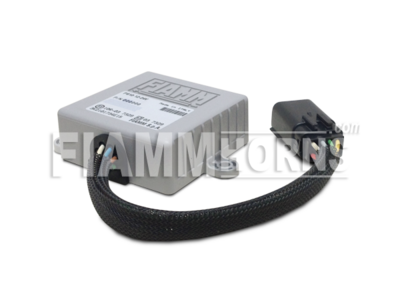

PS10-TOUR Amplifier (95XXXX)
FIAMM PS10 siren amplifier especially for cycling race follow-up vehicles.
This amplifier is developed as part of the FIAMM PS10 system.
PS10system for emergency vehicles is composed by an electronic module/amplifier, 1-, or 2 loudspeakers and a connection cable.
This PS10 amplifier produces a tripple tone sound that is often used for official cycling race follow-up/team vehicles
This particular system is based on the official an homologated PS10 emergency sirens by Fiamm. Please note that this particular system is not homologated and officially road legal in most counties.
Please note: You will need a 12v or 24v power supply (battery) on board for this system.
Basic Technical Info
| Nominal Voltage |
12Vdc / 24Vdc |
| Voltage Range |
10-16V / 20-32V |
| Amperage |
3,5A / 1,75A |
| Power draw / Watt |
42 W |
| Cycles per minute / Alternation |
n/a |
| Frequencies |
Low tones: 360 Hz | 430 Hz
Mid Tones
High tones: 480 Hz | 570 Hz |
| Decibels at 2m |
Depending on used speaker |
| Sound options |
- Short sound
- Long sound
- Reduced volume |
| Operating temperatures (Celcius) |
-40 •C to 95 •C |
| Storage temperatures (Celcius) |
-40 •C to 95 •C |
| IP code (Ingress Protection) |
IP67 |
| Corrosion Resistance (Salt spray test in hours) |
> 480 Hrs |
| Operatin relative humidity (%) |
30% - 100% |
| Continuous operating time (minutes) |
120 min. |
| Weight (grams) |
335 gr. |
| Main Material |
Flame retardant PBT Resin
(Polybutylene Terephthalate) |
| Suitable for Vehicles |
Motorbikes, Trucks, Cars, Boats |
| Connector |
MOLEX Connector |
| HS Code |
85123090 |
| Registrations |
- Not officialy road liscensed |
| Production conformities |
- ISO/TS 16949
- ISO 9001
- ISO 14001 |
