PS10-EMER-WY-UK

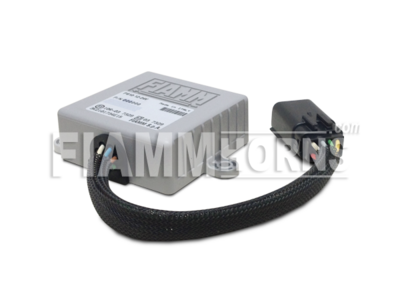

PS10-EMER-WY-UK Amplifier (951034)

Fiamm PS10 amplifier for emergency vehicles in the UK (United Kingdom). Includes Wail-Yelp sound
This amplifier is developed as part of the FIAMM PS10 system.
PS10system for emergency vehicles is composed by an electronic module/amplifier, 1-, or 2 loudspeakers and a connection cable.

This PS10 amplifier produces the sounds for UK emergency vehicles (Fire brigade, ambulance, police)
The PS10system is homologated for usage on these vehicles.

Please note: You will need a 12v or 24v power supply (battery) on board for this system.



Basic Technical Info

Nominal Voltage	12Vdc / 24Vdc
Voltage Range	10-16V / 20-32V
Amperage	3,5A / 1,75A
Power draw / Watt	42 W
Cycles per minute / Alternation	60 cycles
Frequency	Low tone: 440 Hz High tone: 495 Hz
Decibels at 2m	Depending on used speaker
Sound options	Wail - Yelp
Operating temperatures (Celcius)	-40 •C to 95 •C
Storage temperatures (Celcius)	-40 •C to 95 •C
IP code (Ingress Protection)	IP67
Corrosion Resistance (Salt spray test in hours)	> 480 Hrs
Operatin relative humidity (%)	30% - 100%
Continuous operating time (minutes)	120 min.
Weight (grams)	335 gr.
Main Material	Flame retardant PBT Resin (Polybutylene Terephthalate)
Suitable for Vehicles	Motorbikes, Trucks, Cars, Boats
Connector	MOLEX Connector
HS Code	85123090
Registrations	- CEE 2009/19 - R. 10/03 ECE/ONU - National Homologation (F)
Production conformities	- ISO/TS 16949 - ISO 9001 - ISO 14001
