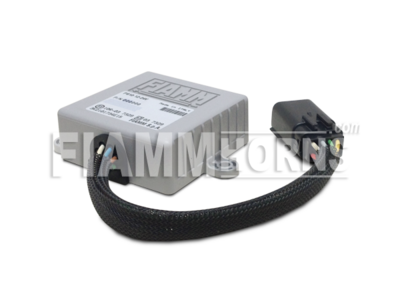

PS10-EMER-N Amplifier (951089)
Fiamm PS10 amplifier for Dutch emergency vehicles.
This amplifier is developed as part of the FIAMM PS10 system.
PS10system for emergency vehicles is composed by an electronic module/amplifier, 1-, or 2 loudspeakers and a connection cable.
This PS10 amplifier produces the sounds for Dutch emergency vehicles (Fire brigade, ambulance, police)
The PS10system is homologated for usage on these vehicles.
Please note: You will need a 12v or 24v power supply (battery) on board for this system.
Basic Technical Info
| Nominal Voltage |
12Vdc / 24Vdc |
| Voltage Range |
10-16V / 20-32V |
| Amperage |
3,5A / 1,75A |
| Power draw / Watt |
42 W |
| Cycles per minute / Alternation |
40 cycles |
| Frequency |
Low tone: 360 Hz
High tone: 480 Hz |
| Decibels at 2m |
Depending on used speaker |
| Sound option |
- Accelerator alternation (80 cycles) |
| Operating temperatures (Celcius) |
-40 •C to 95 •C |
| Storage temperatures (Celcius) |
-40 •C to 95 •C |
| IP code (Ingress Protection) |
IP67 |
| Corrosion Resistance (Salt spray test in hours) |
> 480 Hrs |
| Operatin relative humidity (%) |
30% - 100% |
| Continuous operating time (minutes) |
120 min. |
| Weight (grams) |
335 gr. |
| Main Material |
Flame retardant PBT Resin
(Polybutylene Terephthalate) |
| Suitable for Vehicles |
Motorbikes, Trucks, Cars, Boats |
| Connector |
MOLEX Connector |
| HS Code |
85123090 |
| Registrations |
- CEE 2009/19
- R. 10/03 ECE/ONU
- National Homologation (F) |
| Production conformities |
- ISO/TS 16949
- ISO 9001
- ISO 14001 |
