FIAMM PS20 International 12v

FIAMM PS20 International 12v
FIAMM PS20 International 12v

Electrical control for international pneumatic sirens. Electrical system with control unit that controls magnetic valves. For emergency vehicles such as fire brigade, police and ambulance.

Product number

FIA951079

Current lead/delivery time

2-4 Work days

€ 196,00
Price per Set



Quantity:
Order

PS20 International HI-LO Control Unit 12v (951079)


Electrical control for pneumatic sirens.

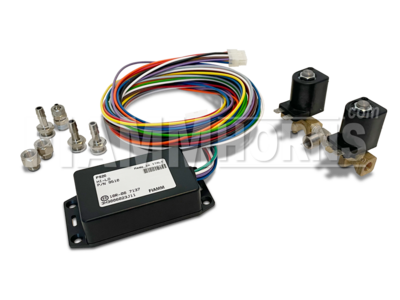

The PS20 is an electrical system consisting of a control unit that controls two magnetic valves (normally closed).
Air horns can be connected to the valves. They are opened and closed according to the programming (depending on the country) of the control unit.

This system is extremely suitable for vehicles with air on board.
Because the air pressure comes from the on-board air system; a separate compressor is no longer necessary.
This improves the reliability of the sirens and the maximum 'on' position of the system compared to a separate compressor.

The PS20 system has been tested against electromagnetic interference and is manufactured and developed in accordance with: CEE2009/19 and ECE Reg. 10.

This control can be used in combination with several types of FIAMM air horn sets.

Please note: You will need an On-Board Air System for this product.


Basic Technical Info
Nominal Voltage 12Vdc
Voltage Range 10-15V
Amperage 1,5A
On board air pressure needed 4-10 bar
Cycles per minute / Alternation 60
Frequency depending on air horns
Sound options - Truck horn sound
- Silent mode
Operating temperatures (Celcius) -30 •C to 80 •C
Storage temperatures (Celcius) -30 •C to 80 •C
Corrosion Resistance (Salt spray test in hours) > 96 Hrs
Operating relative humidity (%) 30% - 80%
Continuous operating time (minutes) > 60 min. (depending on air source)
Weight (grams) 750 gr.
Main Material Flame retardant PBT Resin
(Polybutylene Terephthalate)
Suitable for Vehicles Motorbikes, Trucks, Cars
Pneumatic connections valves Tube Ø 6-4 mm
Tube Ø 10-7 mm
(inlet thread: 1/8 BSPP /Gas)
HS Code 85123090
Registrations - REG. 10 ECE
- Italian Homologation
Production conformities - ISO/TS 16949
- ISO 9001
- ISO 14001


Technical Data Sheets
