FIAMM TA180 - TA150 Set

Name: FIAMM TA180 - TA150 Set
Brand: Fiamm
Price: 235 EUR
Availability: OutOfStock

The Fiamm Truck Power combination. A double tone truck horn set for mounting on the exterior of the cab. Set includes the FIAMM TA/180 high tone- and TA/150 low tone air horns.

Product number

: FIAMM-920613-920614-TA180-150

Current lead/delivery time

: 3 month(s)

€ 235,00

Price per set of 2 horns

This product is not in stock

Valves: *

Fields marked with a * are mandatory

Quantity:

Order

Description
Technical Data Sheets

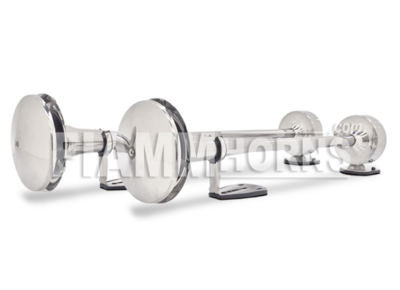

The Fiamm "Truck Power" combination (920613-920314)

A double tone truck horn set for mounting on the exterior of the cab.
Set includes the FIAMM TA180high tone- and TA150low tone air horns.

These horns combined as a set are often installed on the cabs of Mercedes, MAN and Iveco trucks.

Please note: For these air horns you will need a an air source with valve/solenoid that at least produces 4-8 Bar pressure.

Basic Technical Info

Air consumption	5,5 l/sec
Operating air pressure	6-12 Bar
Decibels at 2m	118 dB
Frequency	150 Hz 180 Hz
Weight	TA 150: 1000 gr. TA 180: 950 gr.
Measurements	TA 150: length 623 mm / Ø 140 TA 180: length 528 mm / Ø 140
Type approval	CEE 70/388 REG. 28 ECE
Product Codes	TA150: 920613 TA180: 620614
Inlet (threading)	1/8 BSP (Gas)
Parts included	• FIAMM TA150 low tone • FIAMM TA180 high tone • 2x 1/8BSP to 8mm elbow coupling • 2x horn support • Splitter for 8mm tubing • 5 mtr. tubing (8mm) Optional: A: Lanyard Valve, Couplings and Tubing B: 12v Electro Valve Couplings and Tubing C: 24v Electro Valve Couplings and Tubing

FIAMM 920613-92061 TA150 TA180 Truck horn set
